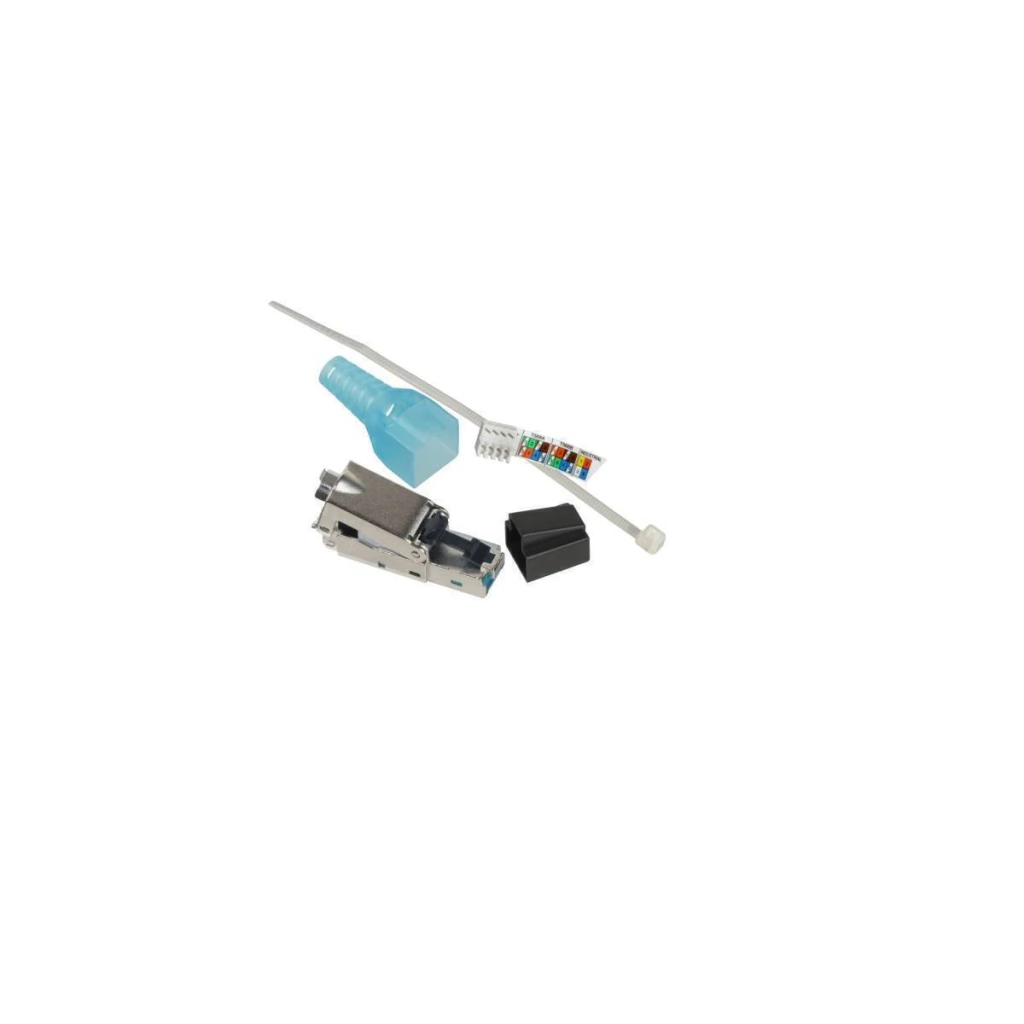

Plug Term de Campo Rj45 Blindado (Actpg6Atls001).
Descripción
product type
Plug
Device presentation
Complete product
Colour tint
Metallic (metal and plastic)
Wiring Colour configuration
TIA-568A/B
Type of packing
Individual bag
Quantity per set
1
Complementary
Connector type
RJ45
AWG gauge
AWG 26...AWG 22 solid cable
AWG 26...AWG 22 stranded cable
Cable outer diameter
6…9 mm
compatible LAN cable types
STP
Communication network category
6A
supported applications
10GBASE-T
protocols
4PPoE 100W (Power over Ethernet)
Product compatibility
RJ45 modular jack
Height
14 mm
Length
45 mm
Width
14 mm
Net weight
0.020 kg
Targeted region
Asia Pacific
Europe
United States
Environment
operational temperature range
-10…60 °C
Ambient air temperature for storage
-20…60 °C
Flame retardance
UL94-V0
Standards
IEC 60603-7
ANSI/TIA/EIA-568-B
ISO/IEC 11081
AS/NZS 3080
